On-Site Service

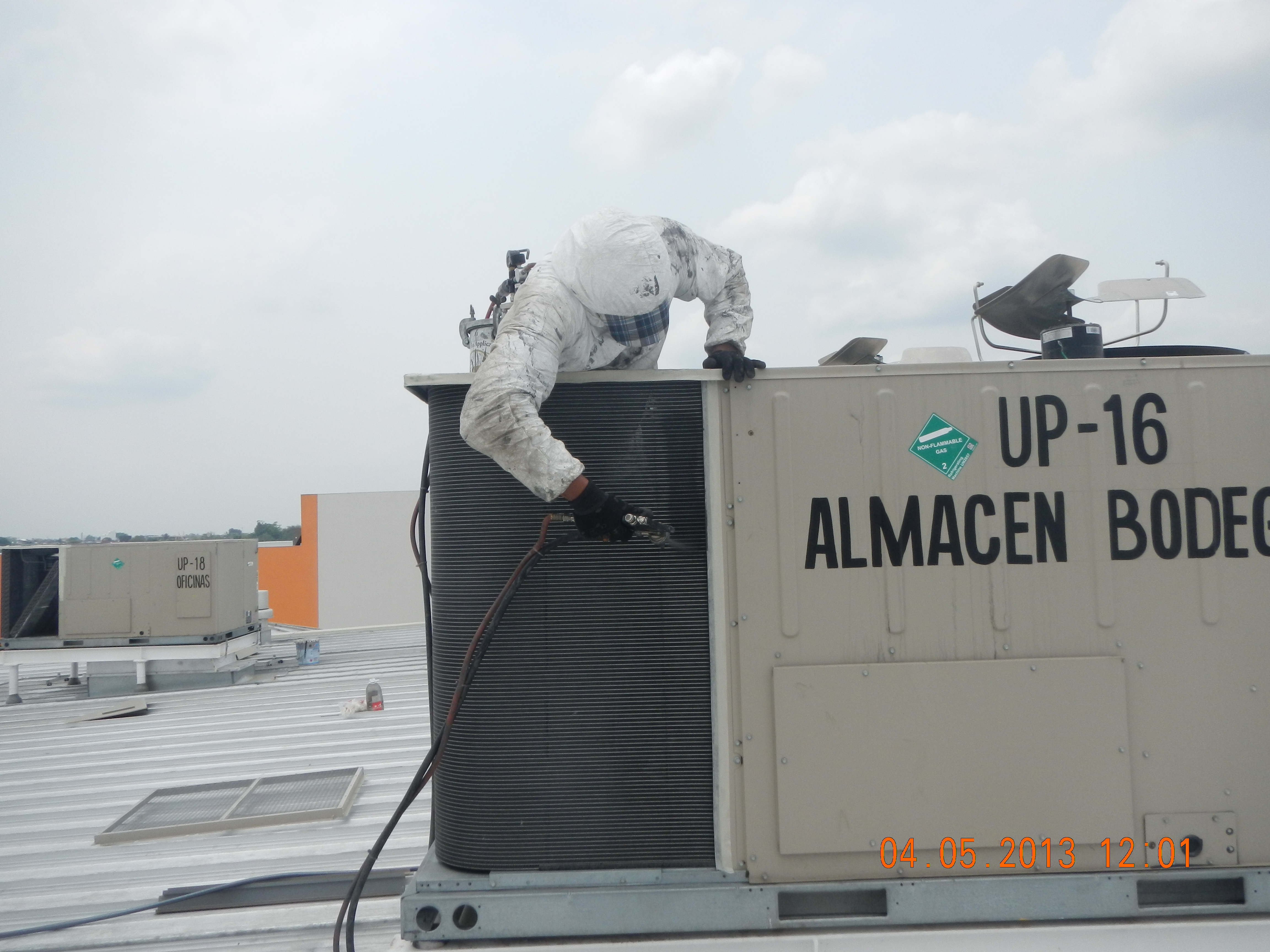

When for some reason the air conditioning or refrigeration equipment does not make it to our plant, we have highly qualified personnel to perform this service in the field, following the same plant processes:
Process
- The unit is inspected before starting the process, verifying that it is in excellent condition.
- Then the necessary parts are dismantled.
- All dirt and/or contamination are removed from the surface using certified products and high-pressure hot water.
- Then we dry the unit with high-pressure air turbines to eliminate any traces of moisture on the surface.
- We proceed to paper and protect the areas we do not want to be coated.
- The anti-corrosion protection process is performed. Depending on the material to be coated, this step will depend on whether it takes two or five steps.
- Once the unit is dry, all paper is removed, and we proceed to reassemble.
- We apply our unique service identification tape and our warranty label.
Specification
Our base product, Insitu® Spray Coat with ES2 technology (incorporated stainless steel pigments), is water-based (solvent-free) and highly corrosion-resistant. This ensures a uniform film without material bridging between fins and less than 1% impact on heat transfer.
| Property | Test method | Performance |
|---|---|---|
| Salt spray | DIN 53167/ASTM B117 | Exceeds 10,000 hours |
| Water immersion | ASTM D870 | 500 hours minimum |
| Pencil hardness | ASTM D3363 | HB-F |
| Crosshatch adhesion | ASTM D3359 | 5B |
| Humidity | ASTM D2247 | 500 hours minimum |
| UV resistance | ASTM D4587 | 500 hours minimum |
| Mandrel test (flexinility) | ASTM D522M | Approved |
| Mildew resistance | ASTM G21 | Approved |
| Continuous condensation according to C5-I | ISO 6270 | Approved |
| Salt spray according to C5-I | ISO 7523 | Approved |
| Chemical resistance according to C5-I | ISO 2812-1 | Approved |
