Contractor Products

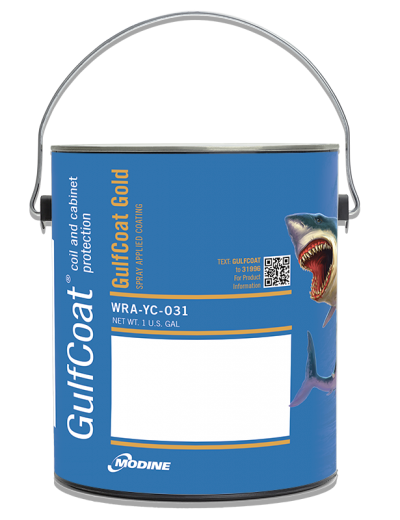

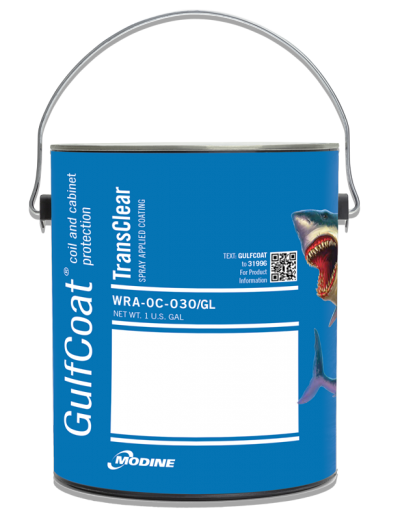

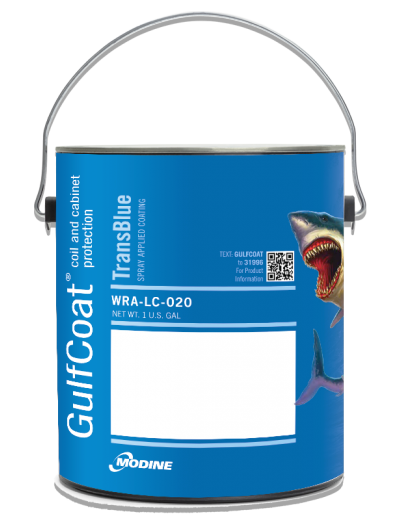

Gallon coatings: TransBlue, TransGold, and TransClear.
Gulf Coat's anti-corrosion coatings and cleaning products are the perfect solution for protecting and maintaining equipment that, for some reason, was not factory-coated or does not have the best coating system (pre-treated fins). They are also the best tool for any contractor looking to keep air conditioning or refrigeration equipment protected from corrosion for longer. The product line can be divided into three parts: TransBlue, TransGold, and TransClear.
GulfCoat™ coatings are flexible, water-based, anti-corrosive synthetic polymers specifically designed for the protection of HVAC/R unit components and enclosures. GulfCoat™ is formulated to provide excellent adhesion, moisture resistance, UV resistance, and corrosion resistance.
Propiedades Técnicas
| Property | Test method | Performance |
|---|---|---|
| Salt fog | DIN 53167/ASTM B117 | Exceeds 10,000 hours |
| Water Immersion | ASTM D870 | 500 hours minimum |
| Pencil Hardness | ASTM D3363 | HB-F |
| Crosshatch Adhesion | ASTM D3359 | 5B |
| Humidity | ASTM D2247 | 500 hours minimum |
| UV Resistance | ASTM D4587 | 500 hours minimum |
| Mandrel Test (Flexibility) | ASTM D522M | Passed |
| Mildew Resistance | ASTM G21 | Passed |
| Sand and Dust Resistance | MIL-STD 810F | Passed |
Application Procedure
- The necessary parts are dismantled.
- Remove all dirt and/or contamination from the surface using certified products and high-pressure water.
- Allow the unit to dry until all traces of moisture are removed.
- Proceed to paper and protect the areas not to be coated.
- Perform the anticorrosion protection process using compressed air with an HVLP spray gun (using gray primer is recommended for galvanized surfaces).
- Once the unit is dry, remove all paper and reassemble.

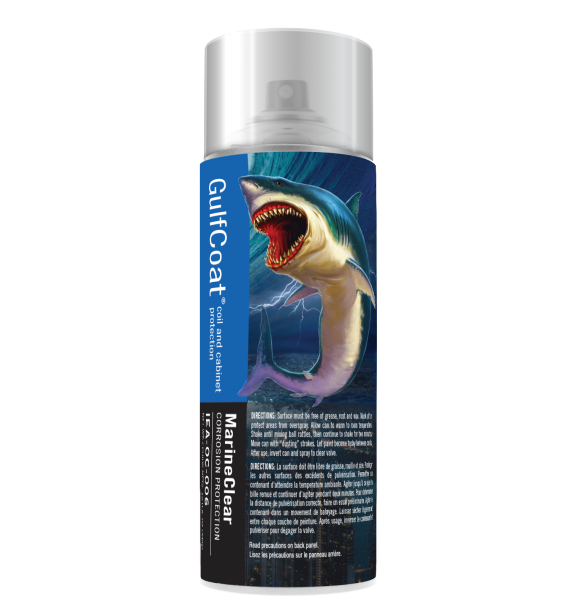

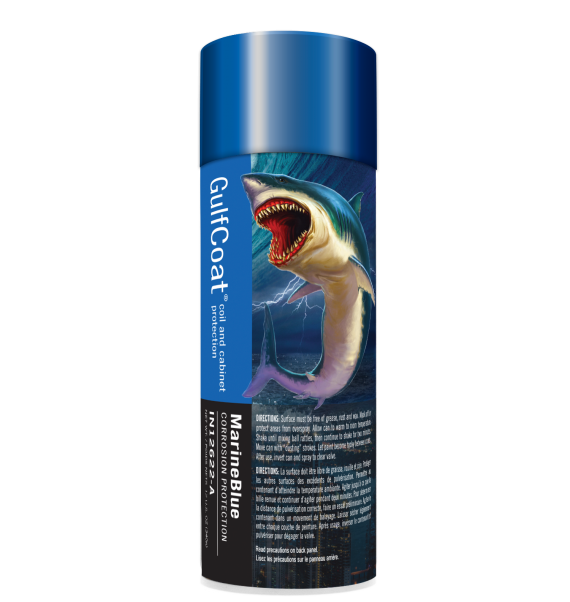

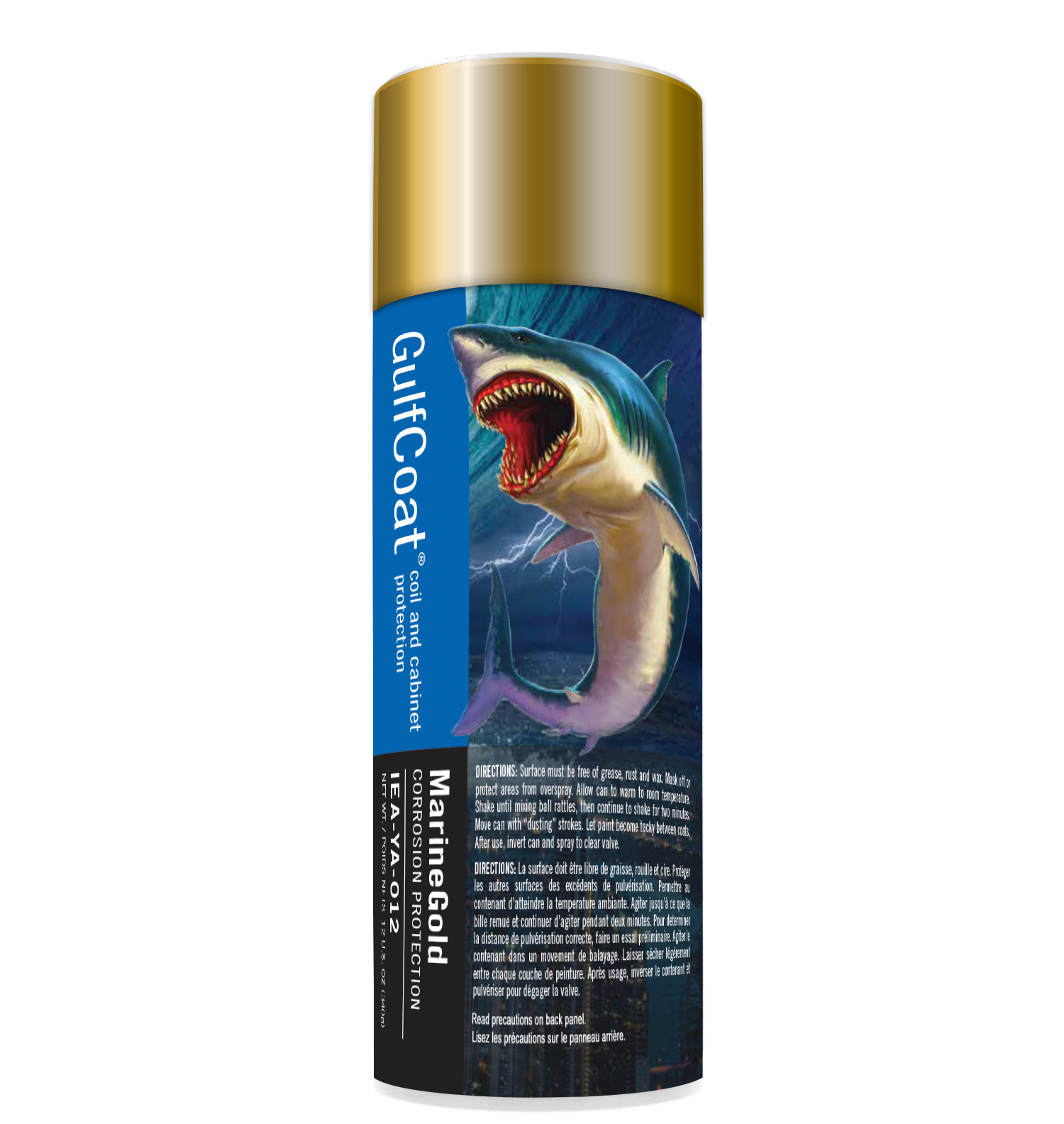

Spray coating: Marine Blue, Marine Gold, Marine Clear.
GulfCoat™ Marine Blue, Marine Clear, and Marine Gold anti-corrosion coatings are specifically designed to protect HVAC/R (heating, ventilation, air conditioning, and refrigeration) components and coils. GulfCoat™ Contractor Series Coatings are formulated to provide excellent adhesion, moisture resistance, UV protection, and corrosion resistance. The product can be applied at your facility or in the field after the HVAC units have been manufactured and installed.
Propiedades Técnicas
| Property | Test method | Performance |
|---|---|---|
| Salt fog | DIN 53167/ASTM B117 | Exceeds 10,000 hours |
| Water Immersion | ASTM D870 | 500 hours minimum |
| Pencil Hardness | ASTM D3363 | HB-F |
| Crosshatch Adhesion | ASTM D3359 | 5B |
| Humidity | ASTM D2247 | 500 hours minimum |
| UV Resistance | ASTM D4587 | 500 hours minimum |
| Mandrel Test (Flexibility) | ASTM D522M | Passed |
Application Procedure
- The necessary parts are dismantled.
- Remove all dirt and/or contamination from the surface using certified products and high-pressure water.
- Allow the unit to dry until all traces of moisture are removed.
- Proceed to paper and protect the areas not to be coated.
- Perform the anticorrosion protection process using compressed air with an HVLP spray gun (using gray primer is recommended for galvanized surfaces).
- Once the unit is dry, remove all paper and reassemble.

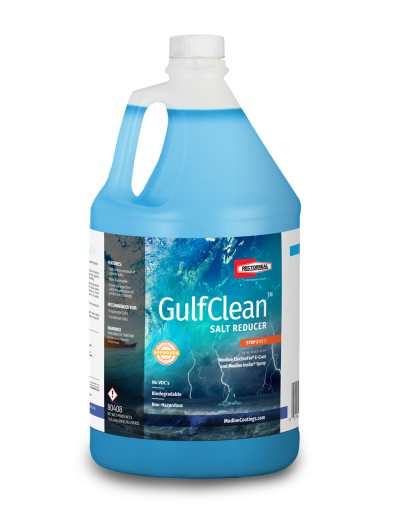

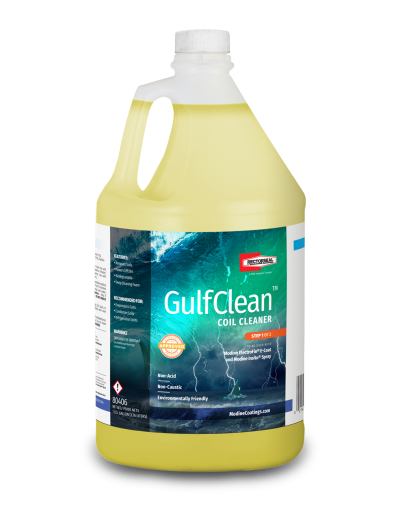

Cleaning Products: Gulf Clean Salt Reducer, Gulf Clean Coil Cleane
The cleaning system is based on two stages and two components. First, we have the Gulf Clean Coil Cleaner, which removes all dirt from the coil without damaging it. Second, we have the Gulf Clean Salt Reducer, which helps remove soluble salts from the surface.
 |
 |
| Coil Cleaner | Salt Reducer |
|---|---|
| Non-acidic | No VOC |
| Non-alkaline | Non-flammable |
| Removes solids | Non-hazardous |
| Removes soil | Helps remove soluble salts |
| Deep cleaning | Does not interfere with coatings |
| Biodegradable | Biodegradable |
